Golf Other Series

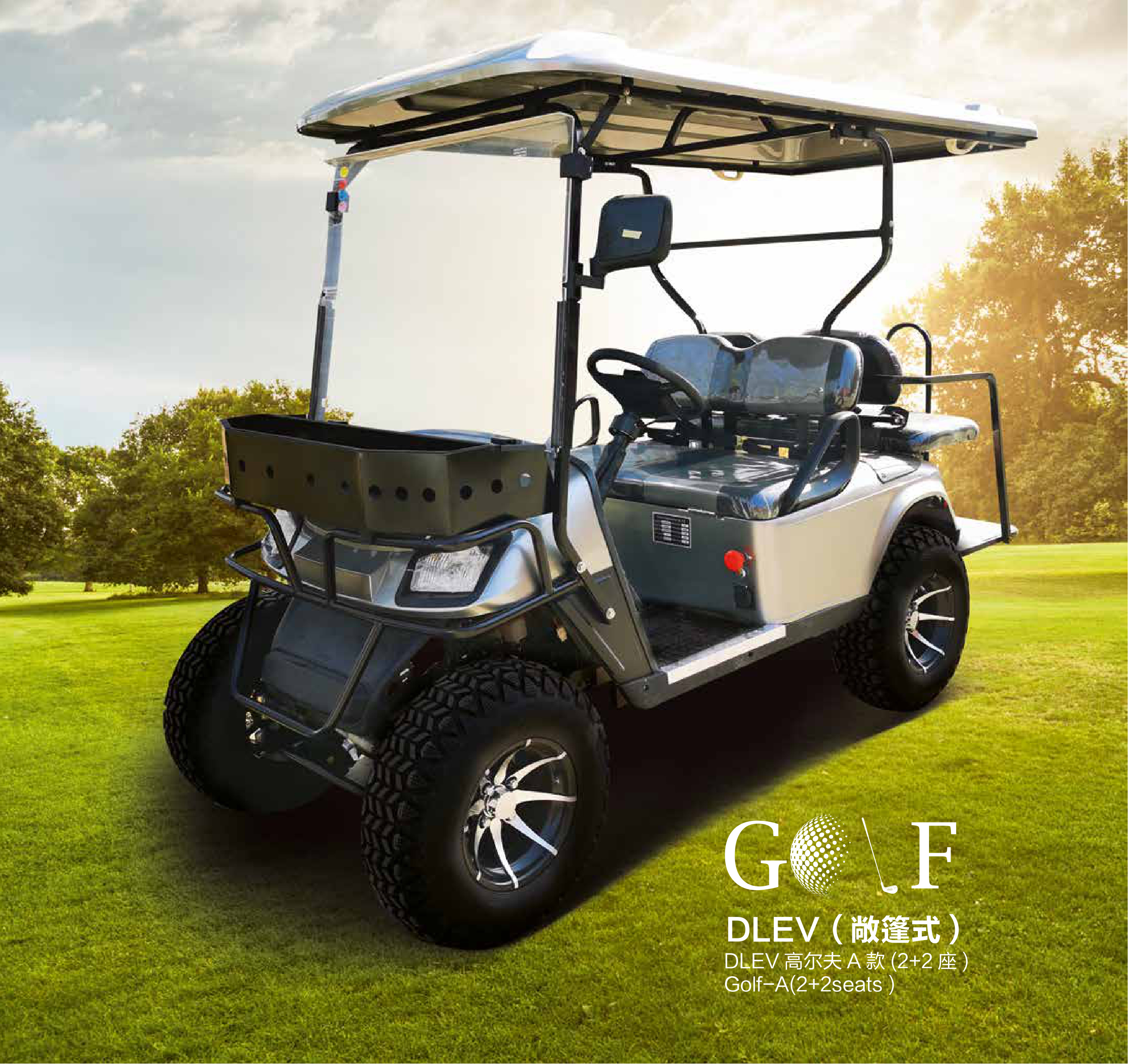

Golf-A 2+2 Seats

Golf Other Series · electric cart built for Golf course, Resort, Industrial plant.

Send an inquiry on WhatsApp for pricing and catalogue

Specifications

Power & Electrical

battery	maintenance free battery/lithium battery
motor	ac asynchronous motor
Charger	Vehicle mounted intelligent charger
Charging time	8-9 hours (discharge rate of 80%)
Charging input voltage	110-240V
Driving range	70-110km
instrument	The instrument displays voltage and power

Dimensions & Performance

Maximum speed	30km/h
Maximum Climbing Slope	30%
Minimum turning radius	3.2m
Wheelbase	1650
Track (front/rear	900/1000
Braking distance	≤5m
Minimum ground clearance	120mm
Seating capacity	4 人
Curb weight (kg	470
Power transmission system	Continuously variable speed system

Body, Chassis & Wheels

Electric control	fully intelligent electronic control
Length, width, and height (mm	2800*1240*1850
car body	＋ /ABS Steel frame+injection molded shell/ABS engineering plastic molded parts
rearview mirror	Manual exterior rearview mirror
Lights and signals	LED LED combination headlights, turn signals, combination taillights, brake lights, electric horn
switch	Start switch, light, forward/backward gear switch
frame	Steel frame
steering wheel	Polyurethane foam steering wheel
steering system	Rack and pinion steering gear
Front axle and suspension	Front axle semi floating
Rear axle and suspension	Integrated rear axle+high-strength steel plate spring+cylindrical hydraulic shock absorber
braking system	Four-wheel drum hydraulic brake, dual-circuit hydraulic brake, parking brake device
wheel	24X8.10-12 24X8.10-12 vacuum radial tire

Applications

• Golf course
• Resort
• Industrial plant
• Logistics park

Product Series

The Golf-A 2+2 Seats belongs to the Golf Other Series. Seating capacity 4 人. The table above lists the full vehicle, electrical, chassis and wheel specifications. All figures are confirmed in writing before each order; colours, seating layouts and accessories can be customised.
