Golf Other Series

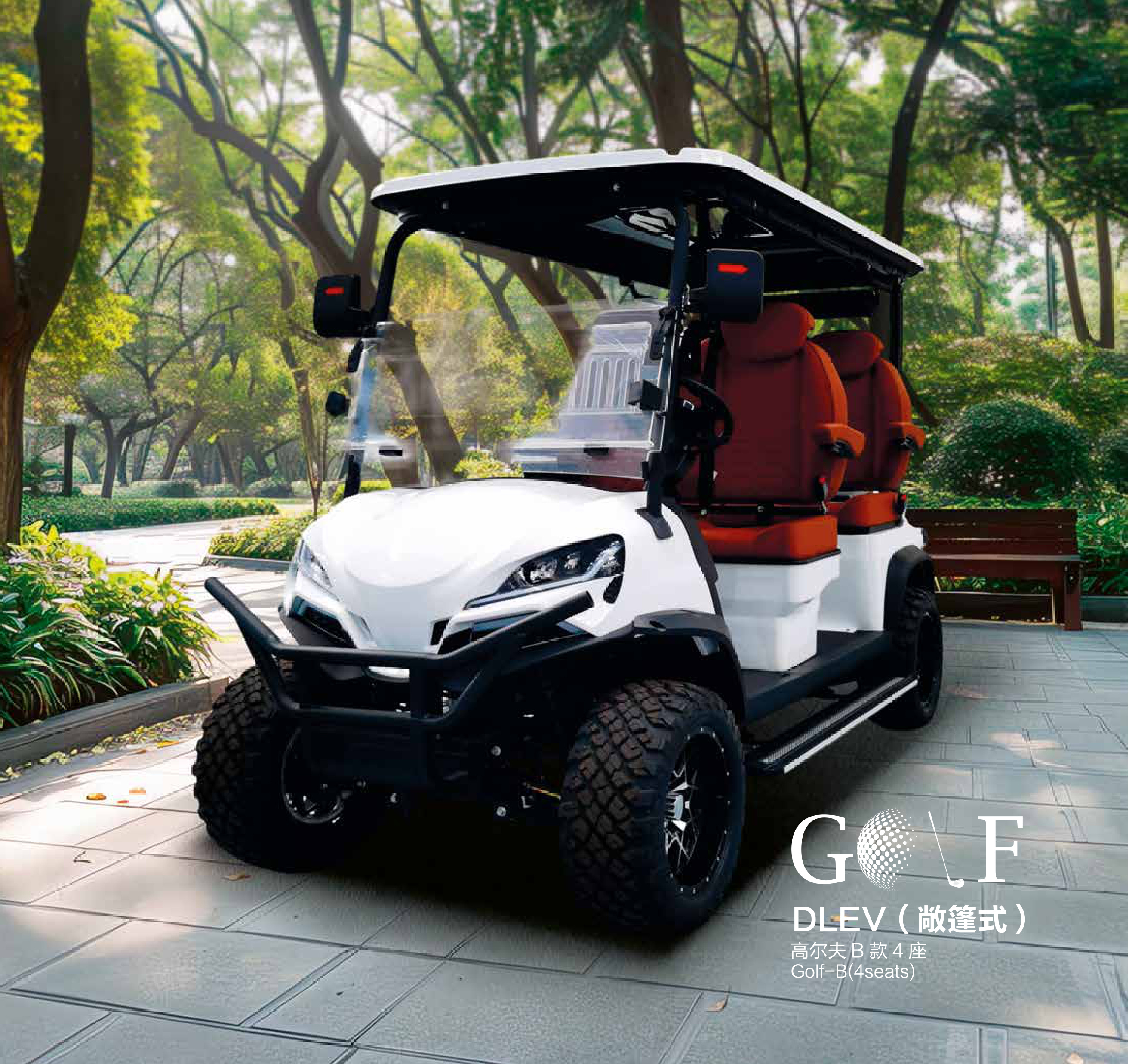

Golf-B 4 Seats
Golf Other Series · electric cart built for Golf course, Resort, Industrial plant.
Send an inquiry on WhatsApp for pricing and catalogue
Specifications
Power & Electrical
| battery | maintenance-free battery |
|---|---|
| motor | AC motor |
| Charger | On-board intelligent charger |
| Charging time | 8-9 hours (discharge rate of 80%) |
| Charging input voltage | 110-240V |
| driving range | 70-110km |
| instrument | Instrument display (including voltage) |
Dimensions & Performance
| Maximum speed | 30km/h |
|---|---|
| Braking distance | ≤5m |
| Minimum ground clearance | 120mm |
| Seating capacity | 4 人 |
| Curb weight (kg | 650 |
| maximum gradeability | 30% |
| Minimum turning radius | 4.5m |
| wheelbase | 2130 |
| Wheelbase (front-to-rear | 930/1020 |
| Powertrain system | Continuously variable speed system |
Body, Chassis & Wheels
| electric control | Fully Intelligent Electric Control |
|---|---|
| Length, width, height (mm | 3000*1300*2000 |
| seat | Luxurious seats, bench seats (leather fabric + high resilience seats), three-point seat belts |
| body | ＋ /ABS Steel frame + injection molded shell/ABS engineering plastic molded parts |
| ceiling | Starry roof with light ring and horn |
| large screen | Multimedia portrait carplay |
| audio | Long cylindrical speaker |
| windshield | Ventilated folding acrylic glass |
| rearview mirror | Manual exterior rearview mirror |
| Lighting and signals | LED combination headlights, turn signals, combination taillights, brake lights, electric horn |
| switch | Start switch, lights, forward/reverse gear switch |
| frame | Steel structure frame |
| external bumper | Iron art, removable |
| side step | lighted side step |
| steering wheel | Adjust the front and rear steering column |
| steering system | Rack and pinion steering gear |
| Front axle and suspension | double wishbone |
| Rear axle and suspension | Integral rear axle + high-strength steel plate spring + cylinder hydraulic shock absorber |
| braking system | Four-wheel front disc/rear drum hydraulic brake, dual-circuit hydraulic system, parking brake |
| wheel | Vacuum off-road aluminum alloy tires |
Applications
- Golf course
- Resort
- Industrial plant
- Logistics park
Product Series
The Golf-B 4 Seats belongs to the Golf Other Series. Seating capacity 4 人. The table above lists the full vehicle, electrical, chassis and wheel specifications. All figures are confirmed in writing before each order; colours, seating layouts and accessories can be customised.
