Golf-E Series

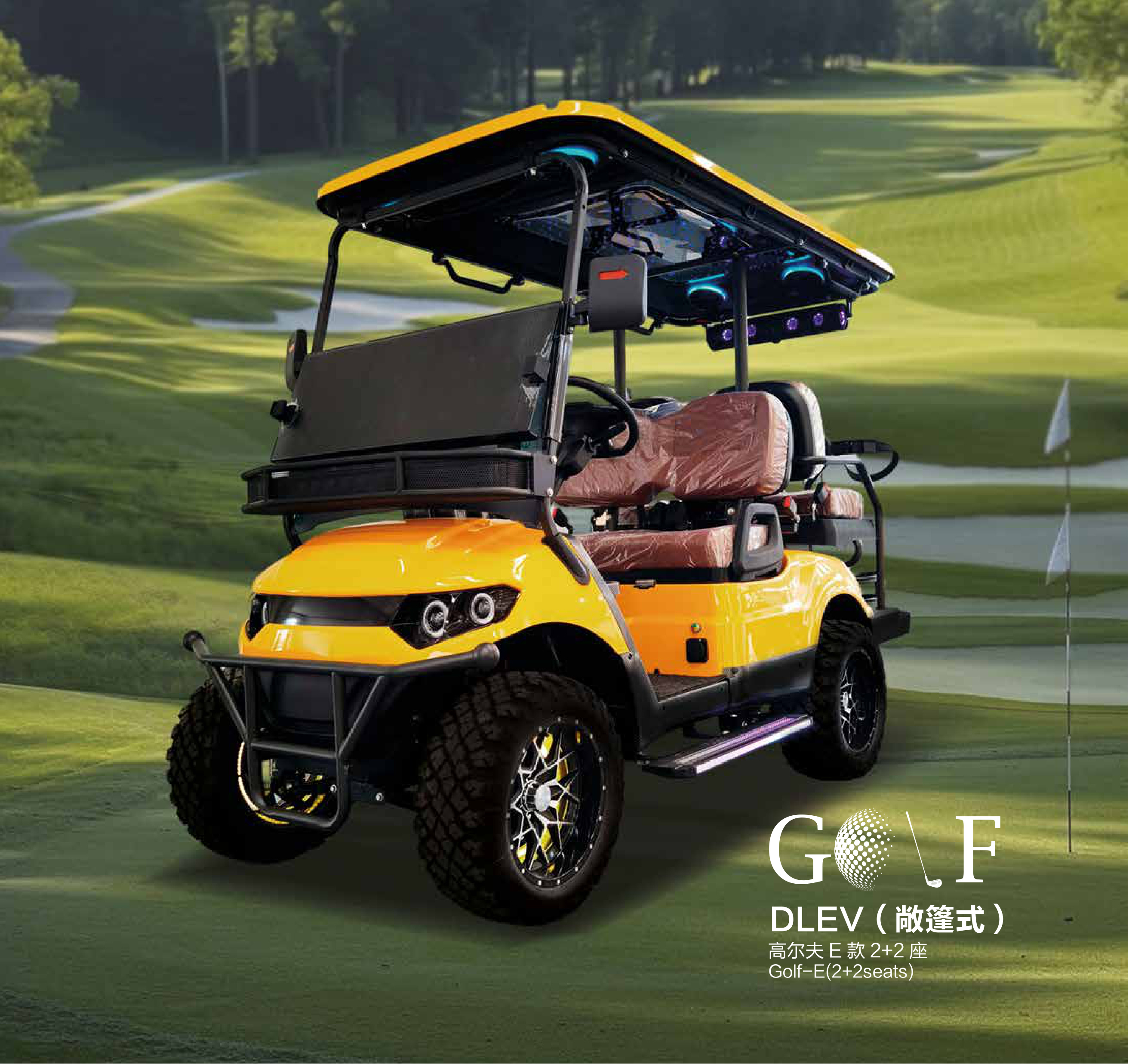

Golf-E 2+2 Seats
Golf-E Series · electric cart built for Golf course, Resort & hotel, Private estate.
Send an inquiry on WhatsApp for pricing and catalogue
Specifications
Power & Electrical
| battery | Maintenance-free battery |
|---|---|
| motor | AC asynchronous motor |
| Charger | Vehicle-mounted intelligent charger |
| Charging time | 8-9hours (at 80% depth of discharge) |
| Charging input voltage | 110-240V |
| Driving range | 70-110km |
| instrument | Instrument display (including voltage) |
Dimensions & Performance
| Maximum driving speed | 30km/h |
|---|---|
| Maximum Climbing Slope | 30% |
| Minimum turning radius | 3.2m |
| Wheelbase | 1680 |
| Track width (front and rear | 930/1025 |
| braking distance | ≤5m |
| Minimum ground clearance | 180mm |
| Passenger capacity | 4 人 |
| Curb weight (kg | 470 |
| Powertrain system | Continuously variable speed system |
Body, Chassis & Wheels
| electric control | Fully intelligent electronic control |
|---|---|
| Length, width, and height (mm | 2800*1280*1850 |
| seat | Luxury row seats (leather upholstery + high-resilience PU foam) |
| body | Steel frame chassis with electrophoretic coating, injection-molded shell, and ABS engineering plastic components |
| windshield | Acrylic folding glass |
| rearview mirror | Manual type exterior rearview mirror |
| Lighting and signals | LED LED combination headlights, turn signals, taillights, brake lights, electric horn |
| large screen | Multimedia all-in-one screen with rearview camera |
| switch | Start switch, light, forward and back gear switch |
| audio | Hi-Fi surround sound system + circular subwoofer or starry ceiling with colorful audio system |
| frame | Steel structure chassis with electrophoretic coating and plastic spraying |
| External bumper | Ironwork, detachable |
| Preload box | Detachable iron |
| Side kick | Detachable aluminum side step |
| steering wheel | Polyurethane foam steering wheel |
| steering system | Rack-and-pinion steering gear |
| Front axle and suspension | MacPherson independent suspension |
| Rear axle and suspension | Integral rear axle + high-strength steel plate spring + cylinder hydraulic shock absorber |
| braking system | Four-wheel front disc/rear drum hydraulic brake, dual-circuit hydraulic system, parking brake |
| wheel | 14-inch tubeless off-road tires with aluminum alloy wheels |
| Ceiling with colorful light strips and seats |
Applications
- Golf course
- Resort & hotel
- Private estate
- Campus shuttle
Product Series
The Golf-E 2+2 Seats belongs to the Golf-E Series. Seating capacity 4 人. The table above lists the full vehicle, electrical, chassis and wheel specifications. All figures are confirmed in writing before each order; colours, seating layouts and accessories can be customised.
