Golf-E Series

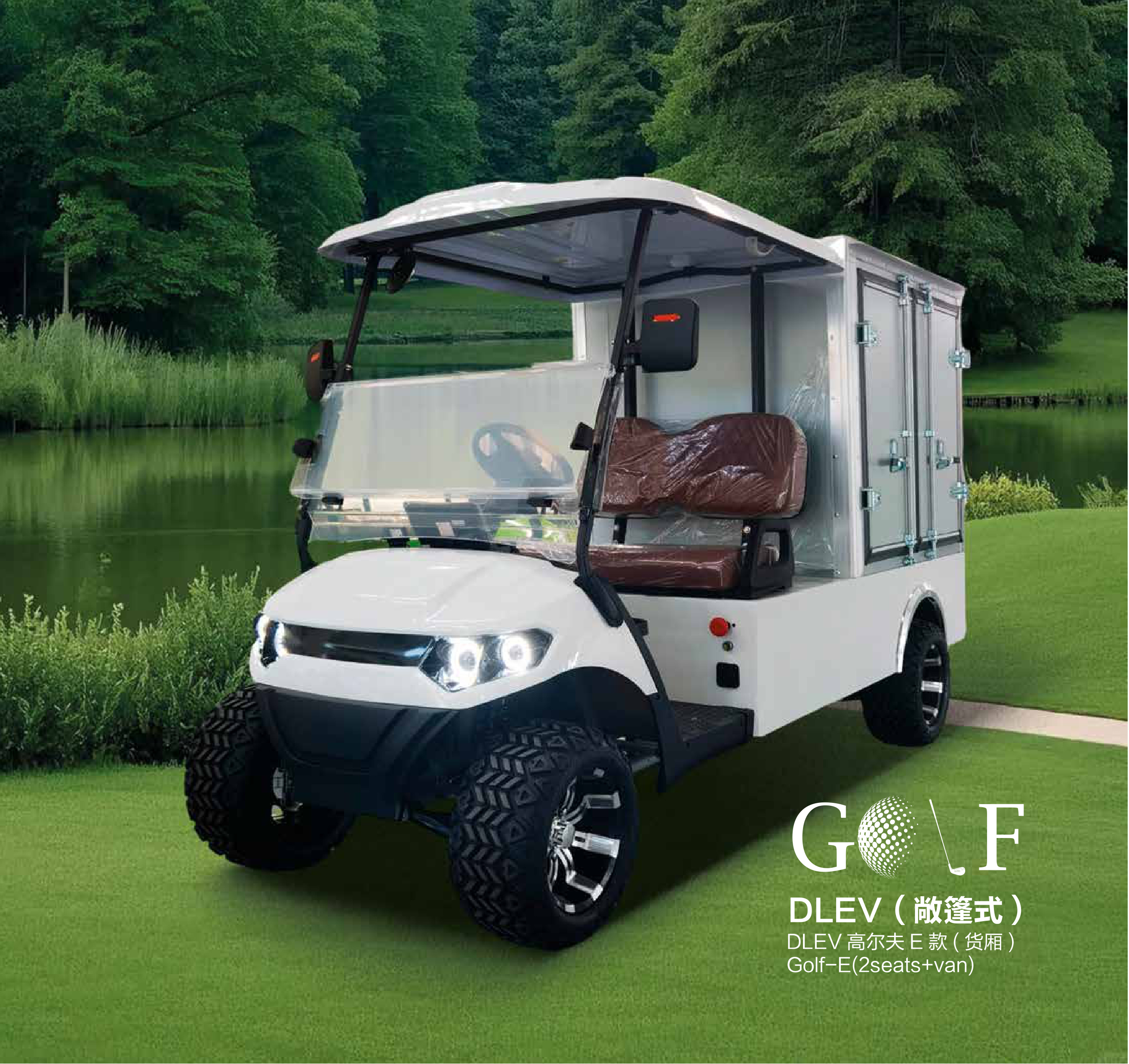

Golf-E 2 Seats Van
Golf-E Series · electric cart built for Golf course, Resort & hotel, Private estate.
Send an inquiry on WhatsApp for pricing and catalogue
Specifications
Power & Electrical
| battery | maintenance free battery/lithium battery |
|---|---|
| motor | ac asynchronous motor |
| Charger | On-board intelligent charger |
| Charging time | 8-9 hours (discharge rate of 80%) |
| Charging input voltage | 110-240V |
| Driving range | 70-110km |
| instrument | The instrument displays voltage and power |
Dimensions & Performance
| Maximum speed | 30km/h |
|---|---|
| Maximum Climbing Slope | 30% |
| Minimum turning radius | 4.5m |
| Wheelbase | 2400 |
| Track width (front and rear | 940/1030 |
| Braking distance | ≤5m |
| Minimum ground clearance | 120mm |
| Seating capacity | 2 人 |
| Vehicle equipment mass (kg | 590 |
| Power transmission system | Continuously variable speed system |
Body, Chassis & Wheels
| Electric control | fully intelligent electronic control |
|---|---|
| Length, width, and height (mm | 3100*1200*1850 (insulation box 1400*1200*1200) |
| car body | ＋ /ABS Steel frame+injection molded shell/ABS engineering plastic molded parts |
| rearview mirror | Manual exterior rearview mirror |
| Lights and signals | LED LED combination headlights, turn signals, combination taillights, brake lights, electric horn |
| switch | Start switch, light, forward/backward gear switch |
| frame | Steel frame |
| steering wheel | Polyurethane foam steering wheel |
| steering system | Rack and pinion steering gear |
| Front axle and suspension | MacPherson independent suspension/Front axle semi floating |
| Rear axle and suspension | Integral rear axle + high-strength steel plate spring + cylinder hydraulic shock absorber |
| braking system | Four wheel front disc rear drum hydraulic brake, dual circuit hydraulic brakeParking brake device |
| wheel | 12-inch off-road tubeless radial tire |
Applications
- Golf course
- Resort & hotel
- Private estate
- Campus shuttle
Product Series
The Golf-E 2 Seats Van belongs to the Golf-E Series. Seating capacity 2 人. The table above lists the full vehicle, electrical, chassis and wheel specifications. All figures are confirmed in writing before each order; colours, seating layouts and accessories can be customised.
