Golf Other Series

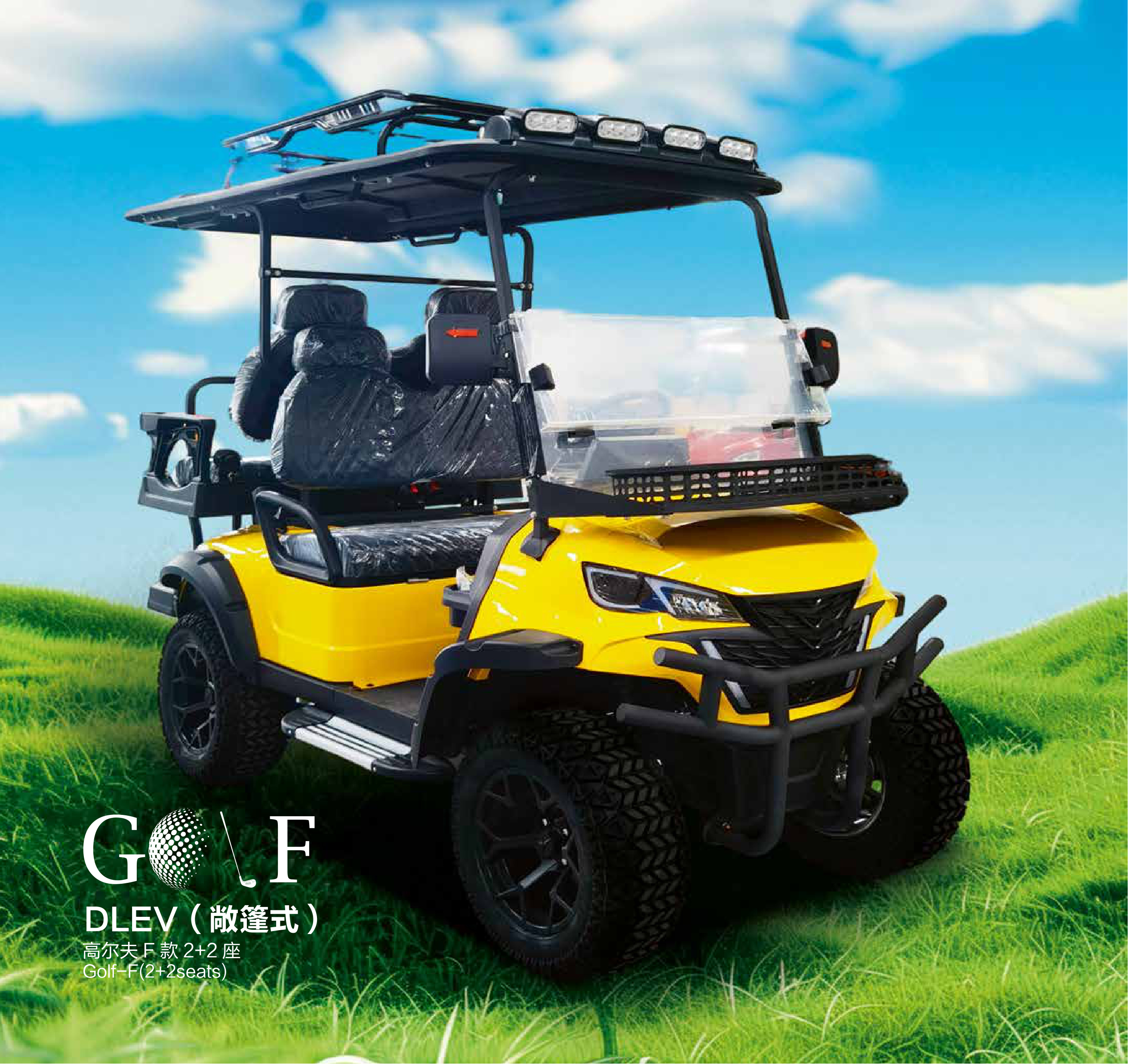

Golf-F 2+2 Seats
Golf Other Series · electric cart built for Golf course, Resort, Industrial plant.
Send an inquiry on WhatsApp for pricing and catalogue
Specifications
Power & Electrical
| battery | maintenance-free battery |
|---|---|
| motor | AC motor |
| Charger | On-board intelligent charger |
| Charging time | hours |
| Charging input voltage | 110-240V |
| driving range | 70-110km |
| instrument | Instrument display (including voltage) |
Dimensions & Performance
| Maximum speed | 30km/h |
|---|---|
| Braking distance | ≤5m |
| Minimum ground clearance | 180mm |
| Seating capacity | 4 人 |
| Curb weight (kg | 490 |
| maximum gradeability | 30% |
| Minimum turning radius | 3.2m |
| wheelbase | 1700 |
| Track (front/rear | 930/1025 |
| Powertrain system | Continuously variable speed system |
Body, Chassis & Wheels
| electric control | Fully Intelligent Electric Control |
|---|---|
| Length, width, height (mm | 2800*1260*1900 |
| seat | Luxurious seats with headrests, bench seats (made of leather fabric + high resilience seats), and two-point seat belts |
| body | ＋ /ABS Steel frame + injection molded shell/ABS engineering plastic molded parts |
| large screen | 9-inch multimedia large screen |
| windshield | Ventilated folding acrylic glass |
| rearview mirror | Manual exterior rearview mirror |
| Lighting and signals | LED combination headlights, turn signals, combination taillights, brake lights, electric horn |
| switch | Start switch, lights, forward/reverse gear switch |
| frame | Steel structure frame |
| external bumper | Iron art, removable |
| side step | aluminum |
| steering wheel | Polyurethane foam steering wheel |
| steering system | Rack and pinion steering gear |
| Front axle and suspension | McPherson independent suspension |
| Rear axle and suspension | Integrated rear axle + high-strength steel leaf spring + telescopic hydraulic shock absorber |
| braking system | Four-wheel drum hydraulic brake, dual-circuit hydraulic brake, parking brake device |
| wheel | 12-inch off-road tubeless radial tire |
Applications
- Golf course
- Resort
- Industrial plant
- Logistics park
Product Series
The Golf-F 2+2 Seats belongs to the Golf Other Series. Seating capacity 4 人. The table above lists the full vehicle, electrical, chassis and wheel specifications. All figures are confirmed in writing before each order; colours, seating layouts and accessories can be customised.
