Patrol & Pickup Series

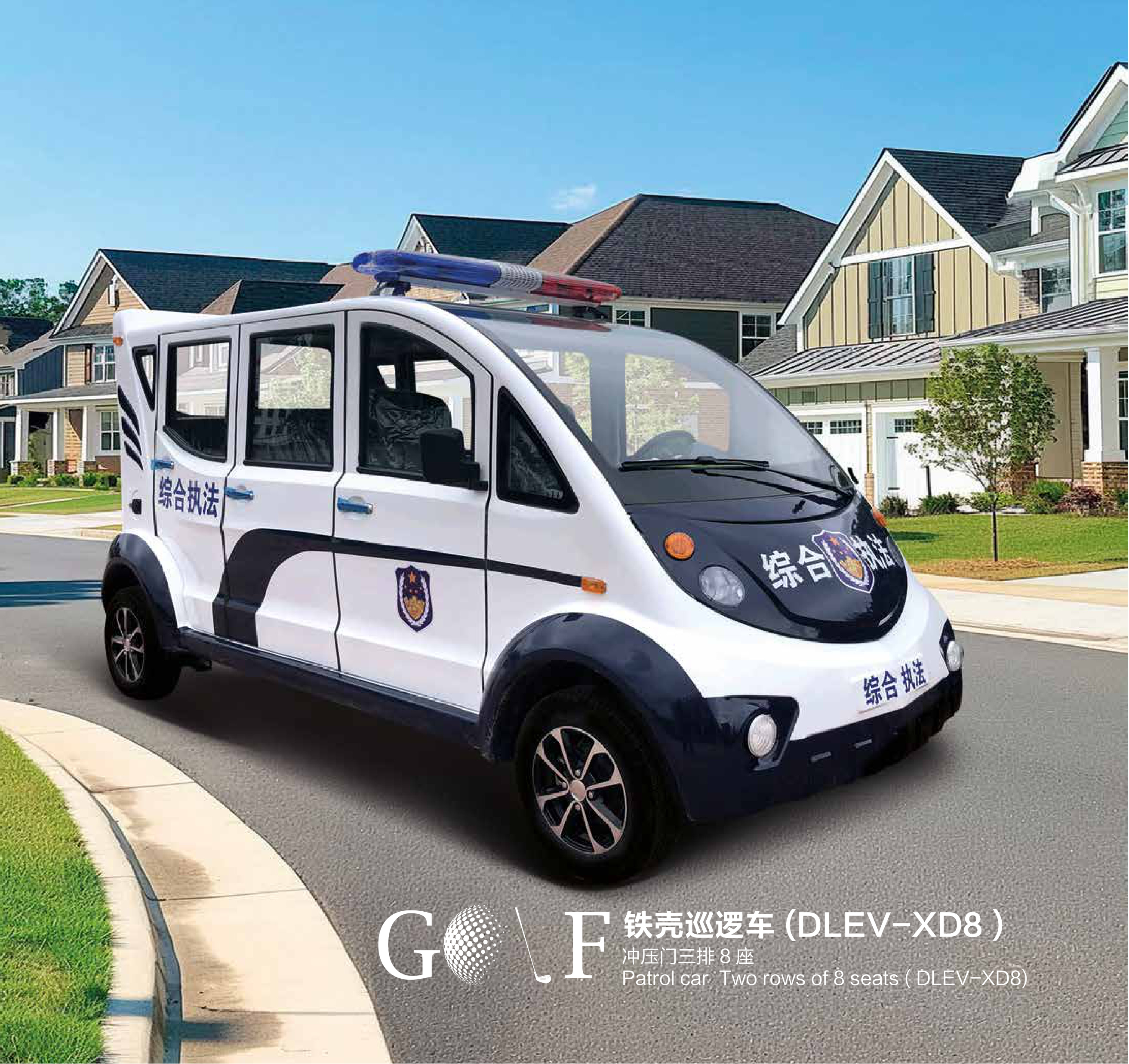

Patrol XD8 8 Seats 3 Rows
Patrol & Pickup Series · electric cart built for Community patrol, Scenic area security, Plant patrol.
Send an inquiry on WhatsApp for pricing and catalogue
Specifications
Power & Electrical
| battery | maintenance free battery/lithium battery |
|---|---|
| motor | ac asynchronous motor |
| Charger | Car smart charger |
| Charging time | hours |
| Range | ≥80Km |
| system voltage | 48V/60V/72V |
| Motor power | 3.5kw/4kw/5kw/7.5kw |
| instrument | Digital display LCD instrument panel (including signals such as voltage, vehicle speed, mileage, lighting, front and rear reversing, etc.) |
Dimensions & Performance
| Seating capacity | people |
|---|---|
| Minimum turning radius | 6.33m |
| Maximum Climbing Slope | ≥ 30% |
| Braking distance | ≤ 5m |
| Top speed | 30Km/h |
| curb weight | 900Kg |
| Wheelbase | 2880 |
| Power transmission system | Continuously variable speed system with a climbing function |
Body, Chassis & Wheels
| Electric control | fully intelligent electronic control |
|---|---|
| Length * width * height | 4000*1650*2000 |
| seat | Bus foam sponge+high rebound fabric |
| car body | Steel frame+iron shell integrated stamping body |
| Door | have |
| steering wheel | Car steering wheel |
| rearview mirror | Manual exterior rearview mirror |
| Body glass | 3C ， With 3C certificate, China Compulsory Product Certification Combination front light, combination rear tail light |
| Lights and signals | Combination front light, combination rear tail light |
| sound | Car mounted MP3 multimedia all-in-one machine, reverse camera, professional speake |
| Wire harness | National standard waterproof and fire-retardant wire harness+automotive fuse box system |
| Top handle | Standard configuration |
| Warning lights | LED LED high-efficiency explosive flashing alarm light |
| steering system | Rack and pinion steering gear |
| Front and rear axles and suspension | MacPherson independent suspension/Front and rear semi floating suspension systems |
| braking system | Front disc and rear drum brake, double-loop hydraulic brake |
| tyre | 155-65R13、 155/65R13 highway tires, aluminum wheels |
Applications
- Community patrol
- Scenic area security
- Plant patrol
- Airport & seaport
Product Series
The Patrol XD8 8 Seats 3 Rows belongs to the Patrol & Pickup Series. Seating capacity people. The table above lists the full vehicle, electrical, chassis and wheel specifications. All figures are confirmed in writing before each order; colours, seating layouts and accessories can be customised.
